Description

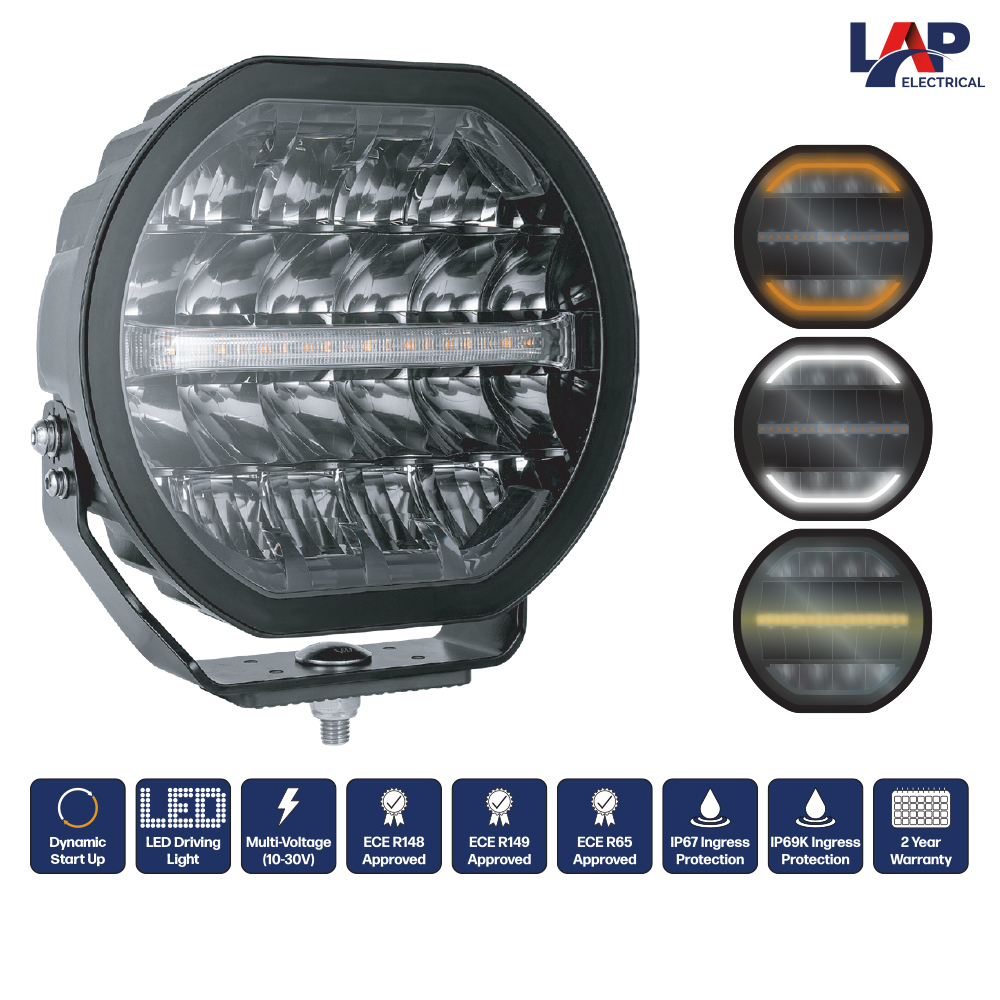

The 9″ LAPCV509 LED driving light with amber and white marker lights featuring Dynamic Start-Up Technology. Fully ECE approved driving light from 8 x 18W LEDs with separate off-road boost function.
Features
- Multi-voltage (10-30V)
- 10169 Lumen (off-road boost mode)
- 4500 Lumen (ECE approved driving beam)
- Manufactured with 8 x 18W & 12 x 4W LEDs
- ECE R148 approved white marker light
- Amber marker function
- Central R65 amber warning flash (single flash)
- Link mulitple driving lights for synchronised amber flash
- Marker lights with Dynamic Start-Up technology
- IP67 and IP69K ingress protection
- Dimensions: 228 (L) x 208/235 (H) x 86/93mm (D)
- Current consumption (ECE driving beam): 1.2A @ 12V, 0.8A @ 24V
- Heavy duty aluminium housing
- Supplied with 6-way Deutsch plug and mating plug for easy installation
- 2 year warranty
Details
| Weight | 0.8 kg |
|---|
